| Bourno's MPJA MP3 player hack |

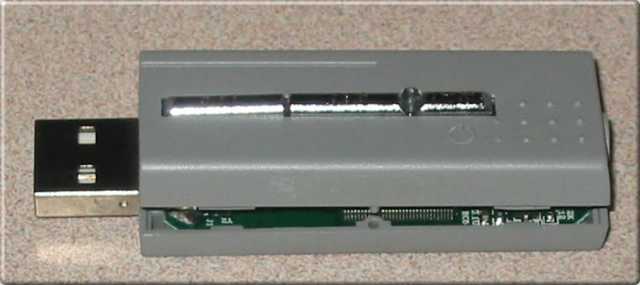

Crack open the USB part.

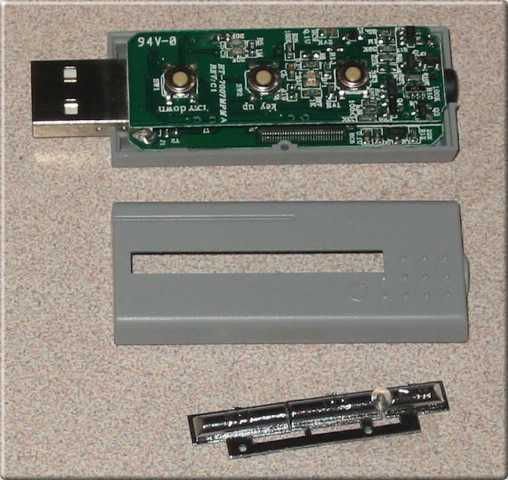

I tore out the push buttons
I then made a couple holes. One to get to the - Battery side
(I removed the battery first before drilling)
The cover slot was enlarged before snapping back together.
(I removed the battery first before drilling)
The cover slot was enlarged before snapping back together.

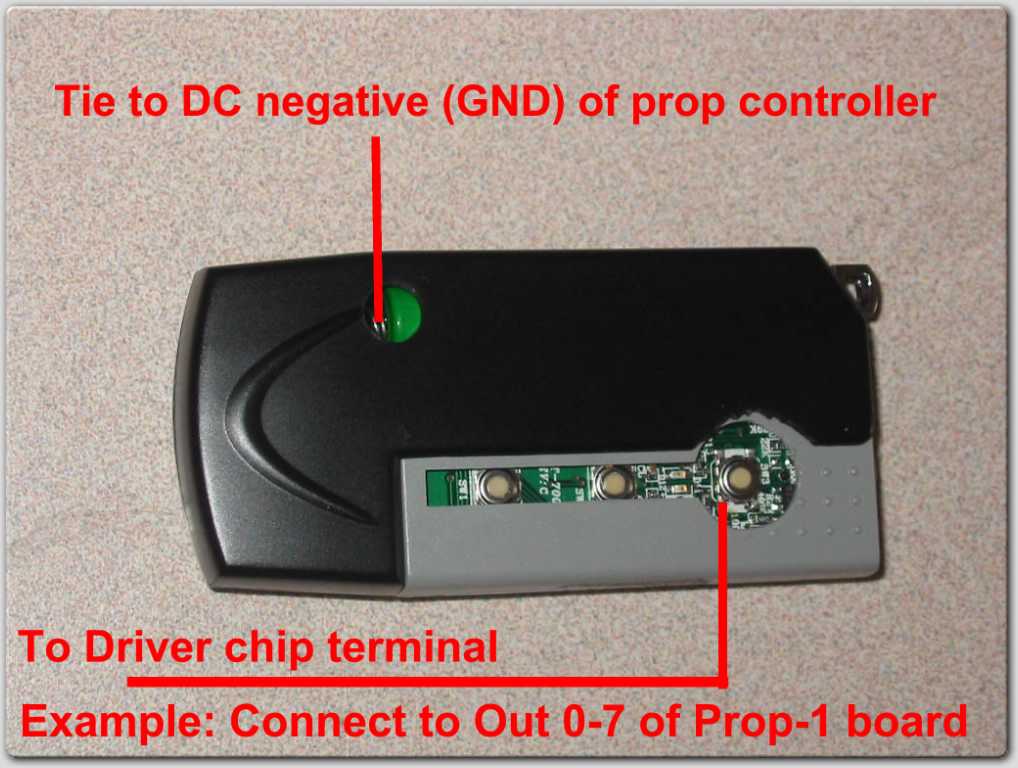

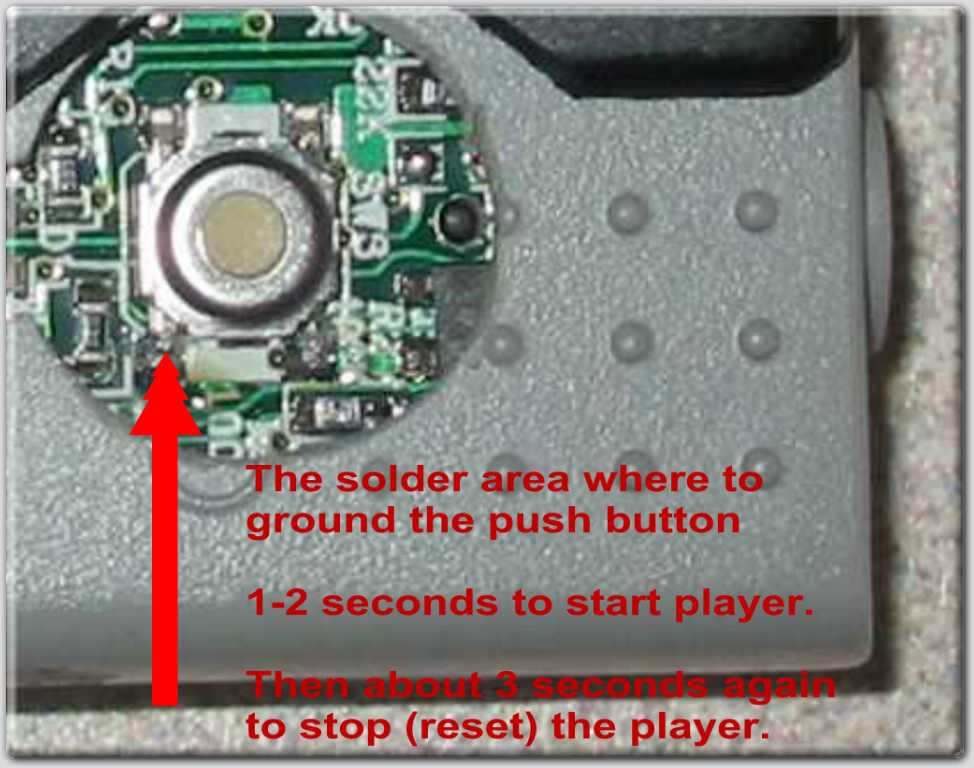

At this time (1-27-07), I have only tested this by doing jumper
tests from this solder point to the battery DC negative. The
above wiring should work the same.
tests from this solder point to the battery DC negative. The
above wiring should work the same.
| A big thanks to Otaku at HauntForum.com for telling us about this $5 MP3 player at mpja.com This is going to be my hack version to control it via a Parallax controller board. |
The best way to control the MP3 player is to have the Prop-1 control a relay and the MP3
control points connected to the Common and Normally Open contact points of the relay.
control points connected to the Common and Normally Open contact points of the relay.
