| Leaf Monster Home Page |

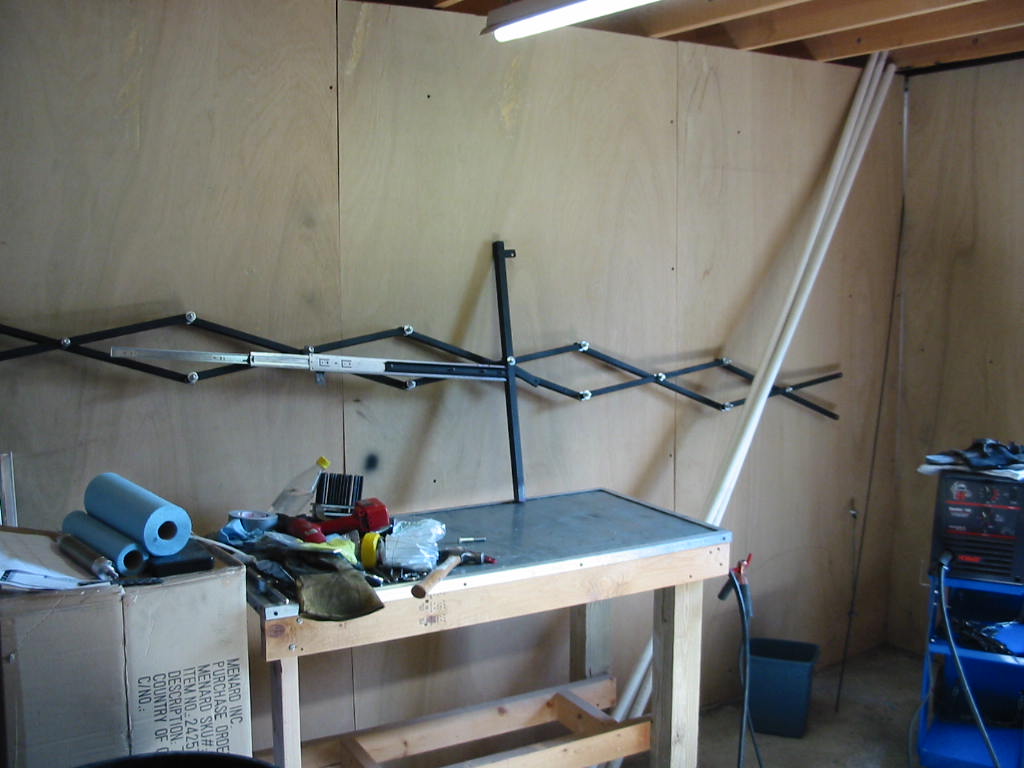

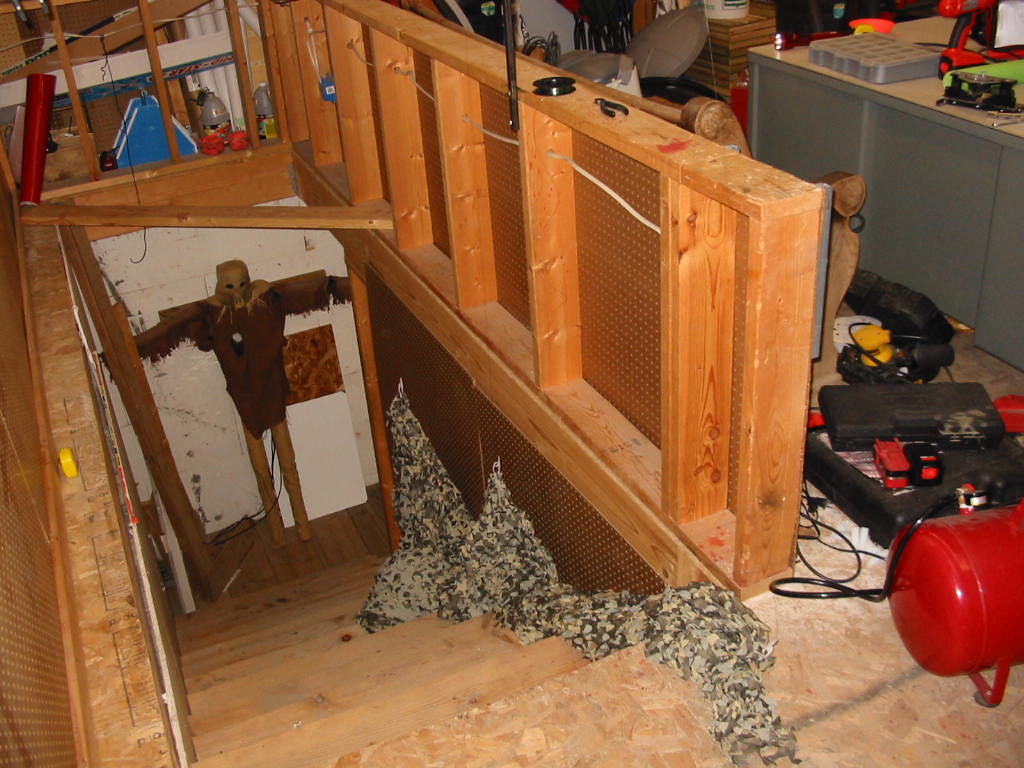

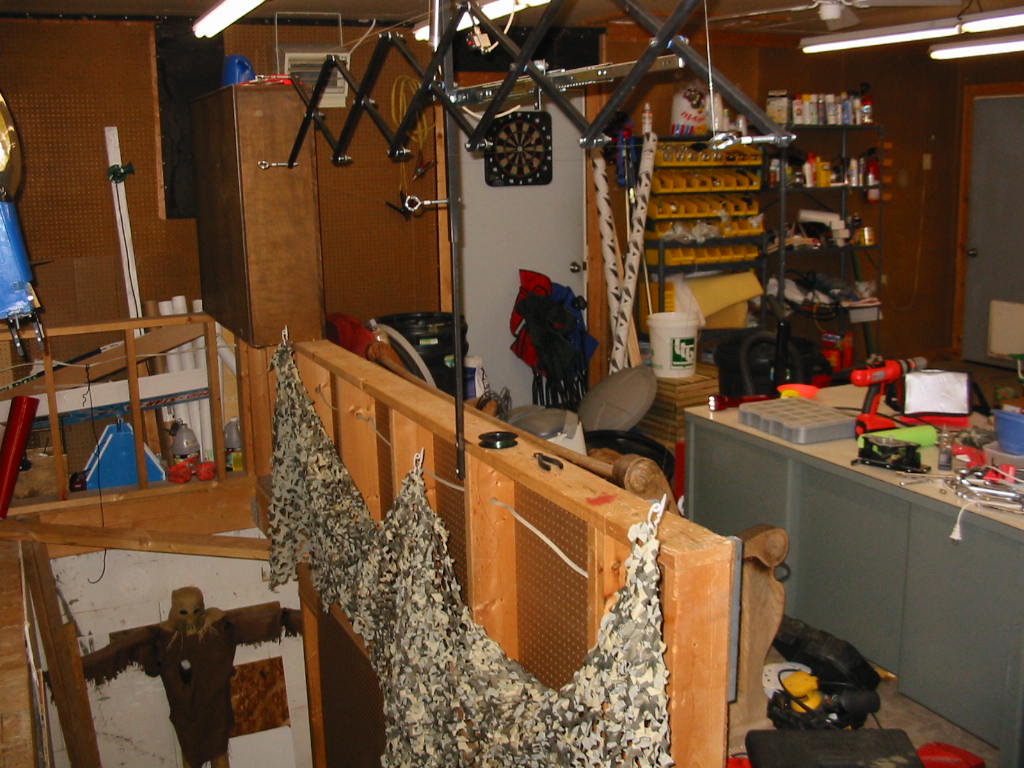

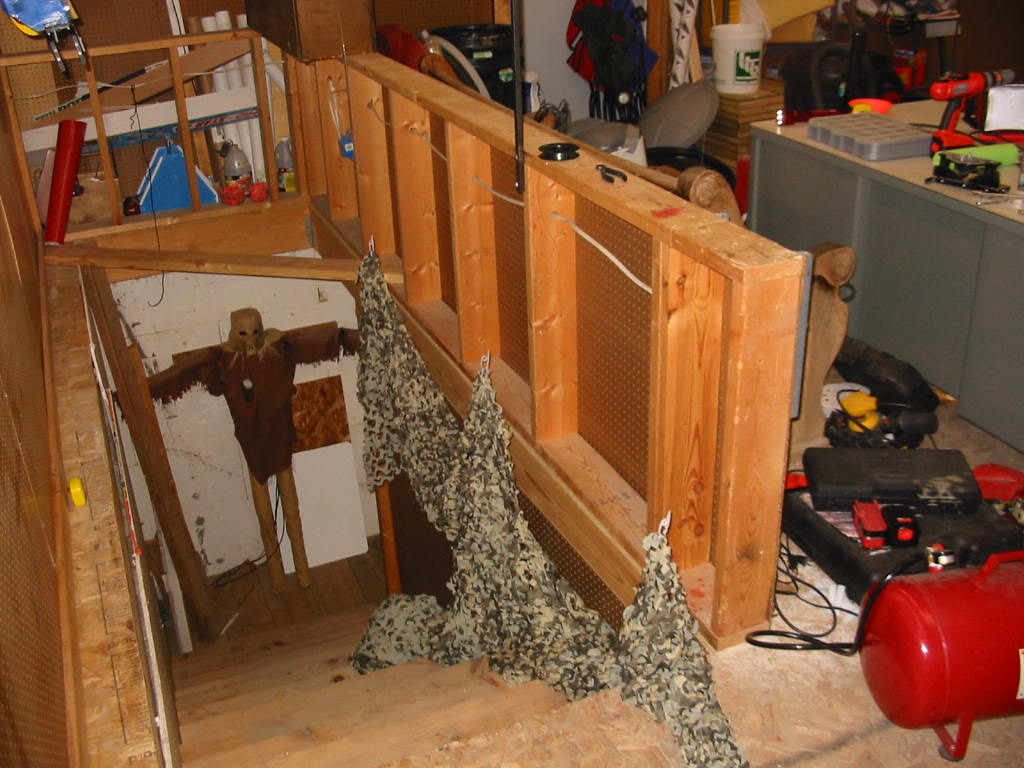

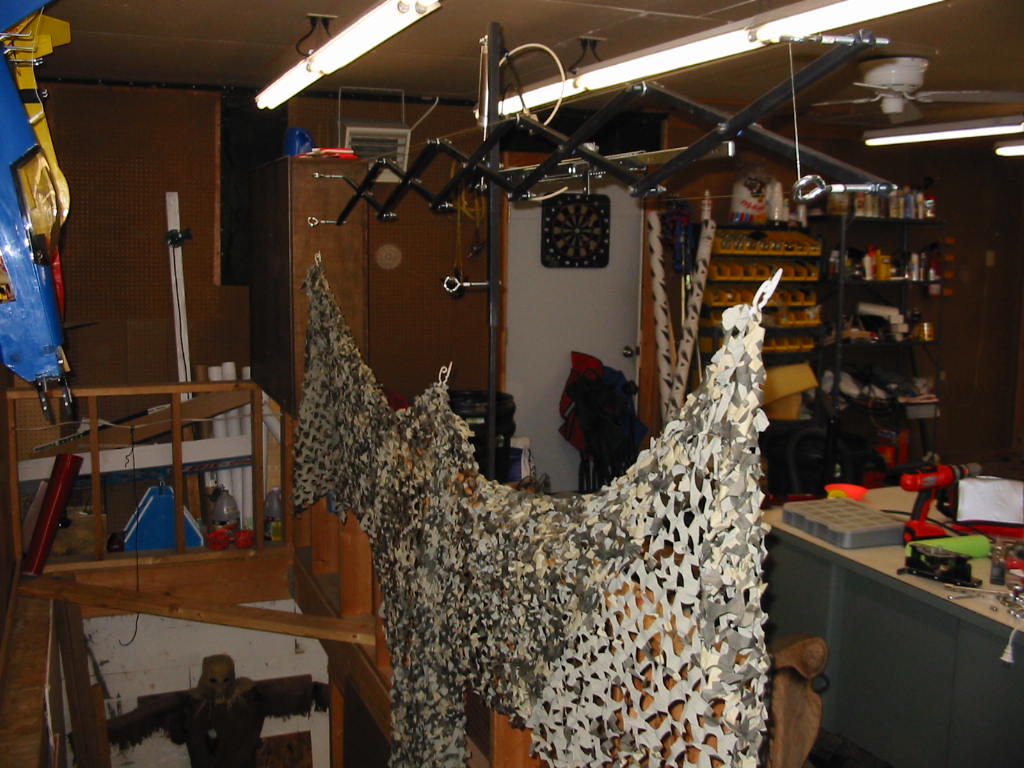

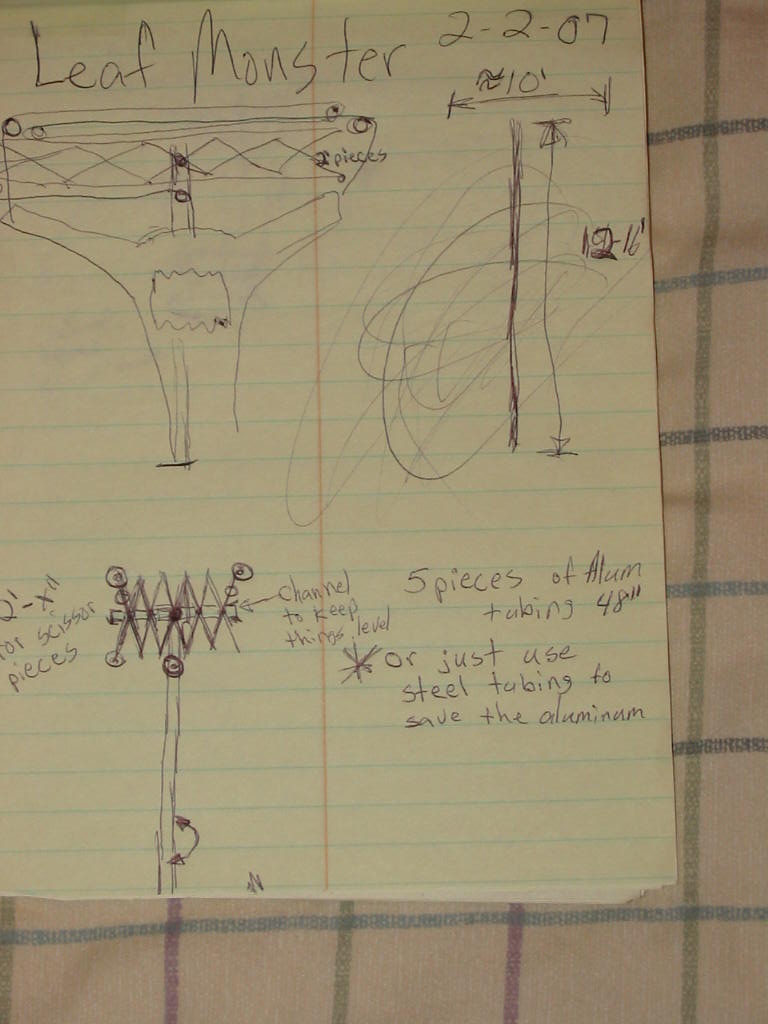

The scissor mechanism is placed 15 to 20 feet
in the air. When in the retracted mode, you
see a small pile of leaves or such. When the
scissor extends, the pile of leaves grow into a
20 foot tall monster.
in the air. When in the retracted mode, you
see a small pile of leaves or such. When the
scissor extends, the pile of leaves grow into a
20 foot tall monster.

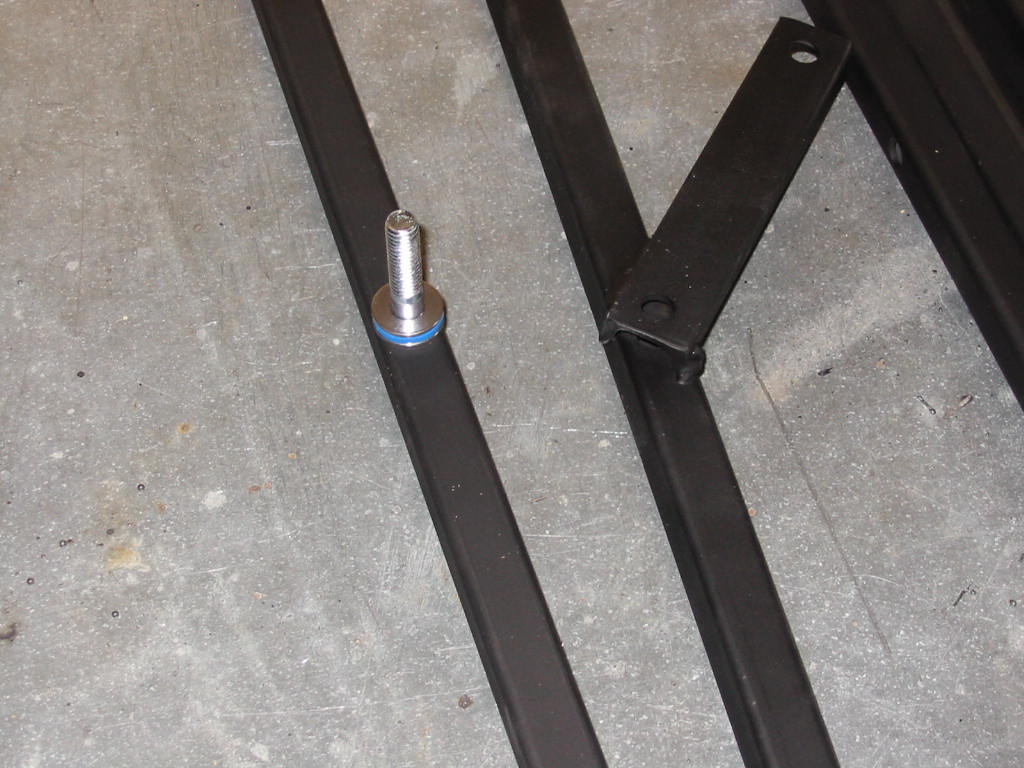

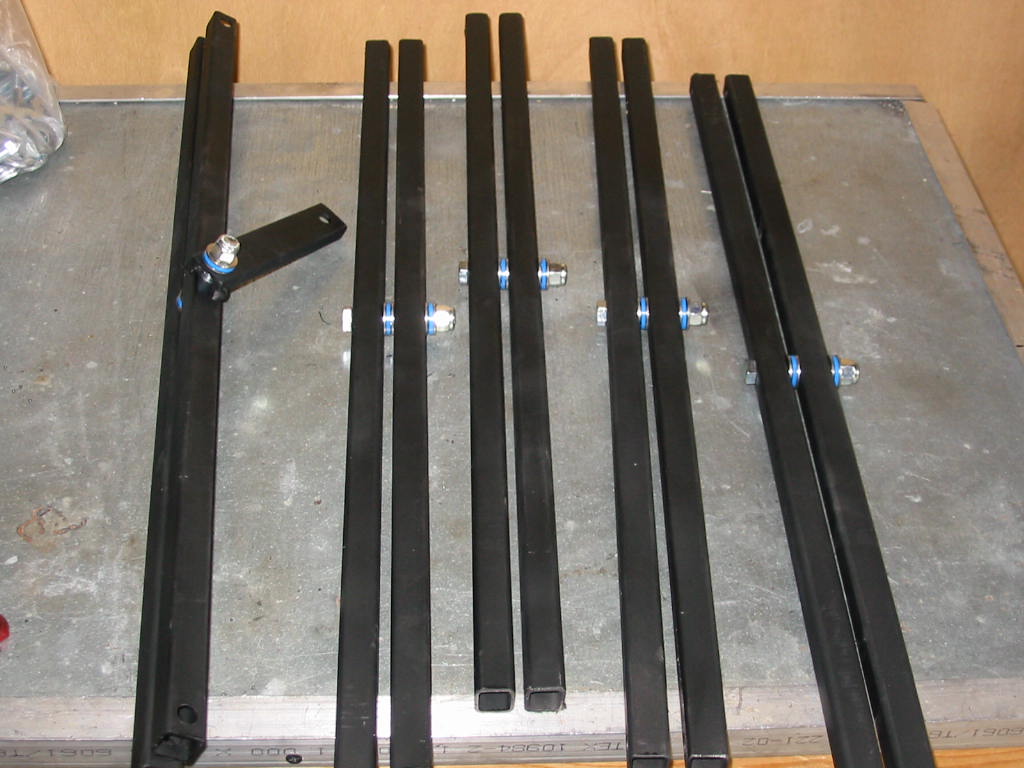

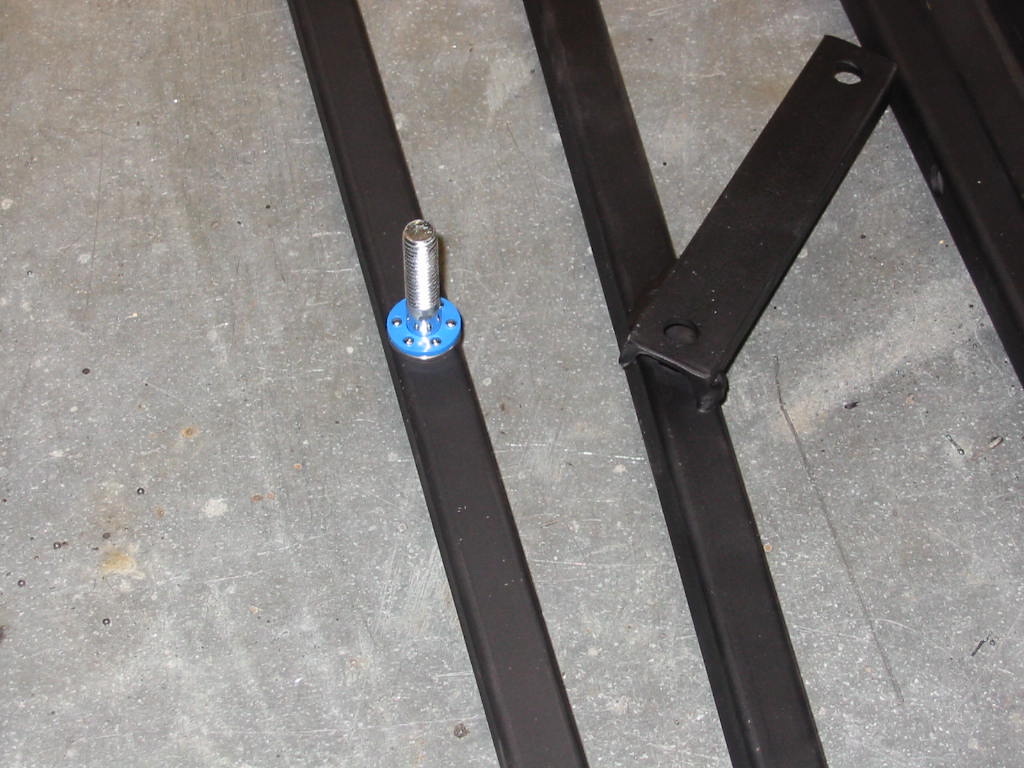

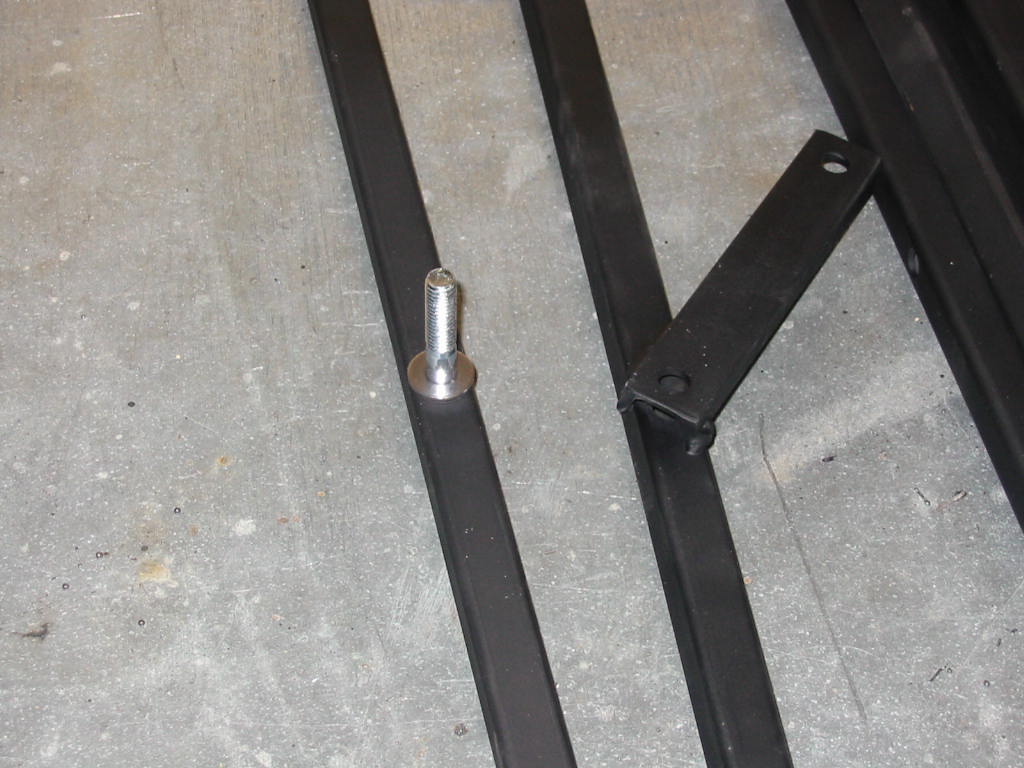

Thrust bearings were used at the central pivot points to see
how they would perform for giving a smooth, easy movement
for the scissor mechanism.
how they would perform for giving a smooth, easy movement
for the scissor mechanism.

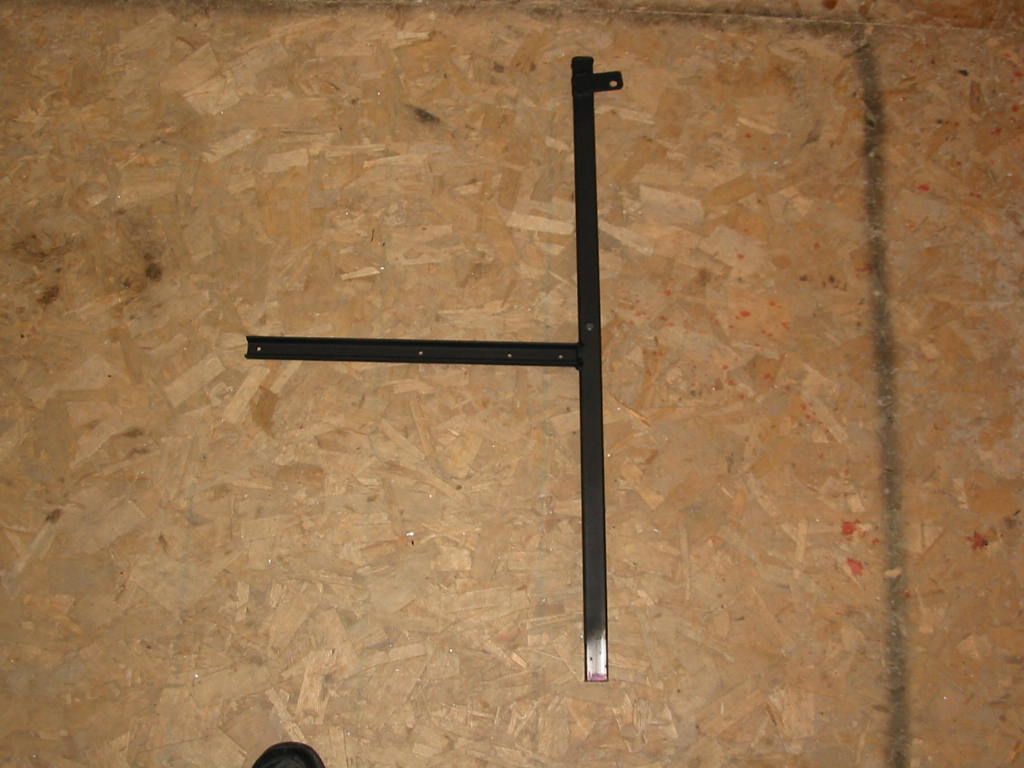

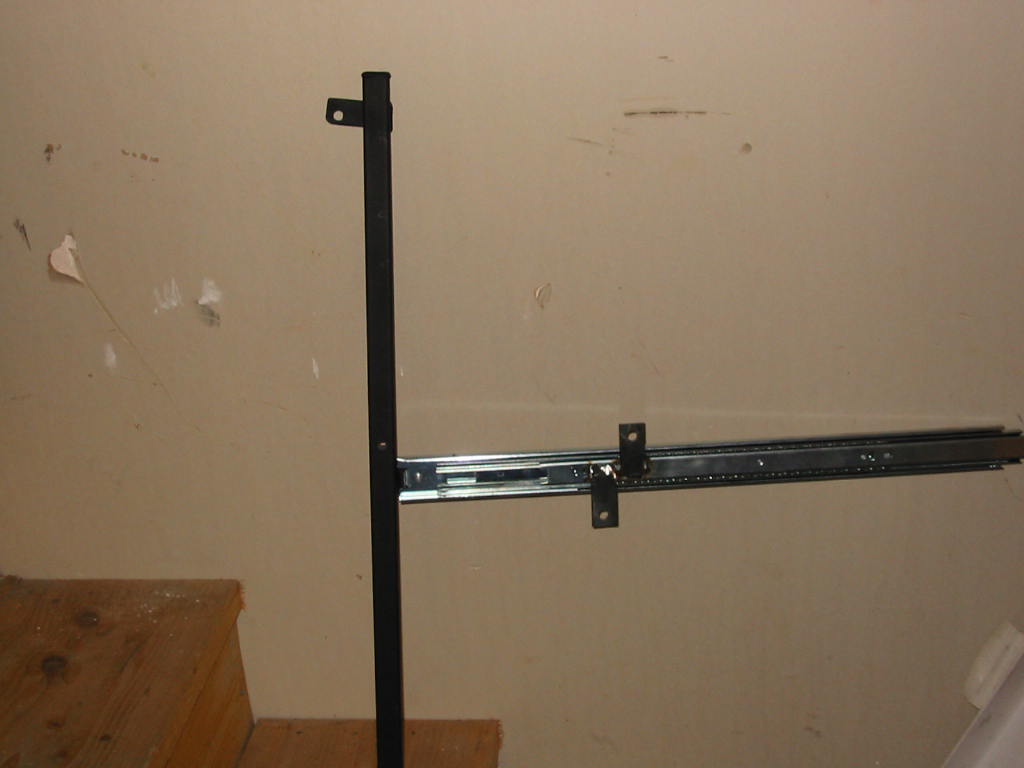

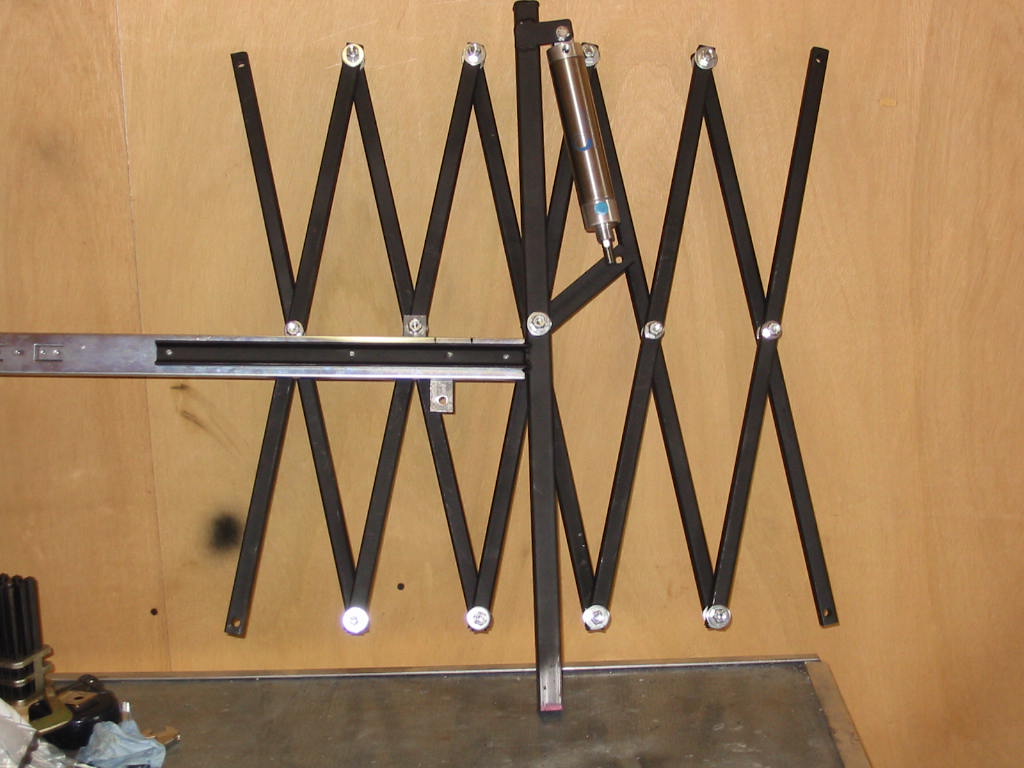

This is the vertical tube that is attached to the tall pipe. It provides
the horizontal stability of the scissor mechanism by a 24" drawer slide
and is the air cylinder mounting piece as well.
the horizontal stability of the scissor mechanism by a 24" drawer slide
and is the air cylinder mounting piece as well.
